cottonseed oil pressing line

Cottonseed oil pressing line includes three major steps which are seed cleaning, oil extracting and oil refining. KMEC is specialized in customizing small scale oil production unit with different capacities. The cottonseed oil pressing line we offered is of high quality, easy to operate, safe but needs less investment.

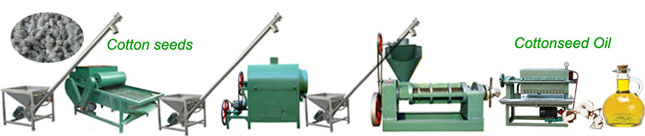

cottonseed oil pressing unit line


Main Process of Cottonseed Oil Pressing

The process of cottonseed oil pressing contains cottonseed cleaning, cooking, cottonseed oil extracting, and crude oil filtering. If you want to get purer oil, you can also pick up our small oil refining line to further refine the cottonseed oil.

main steps of cottonseed oil pressing

Main Equipment of the Cottonseed Oil Pressing Line

The integrated oil press machine combines oil pressing and filtering in one machine; if screw oil press is chosen, you are able to pick up filter press to help refine purer oil or you can just choose to set up a small scale oil refinery line.
Cleaning Sieve
cleaning sieve in small oil pressing unit Model: 6SX-1200
Capacity: 3~5T/H
Power: 1.5KW
Net Weight: 300KG
Outside Size:2350*1350*1300MM
Cooker
cooker machine in small scale oil expelling line Model: 6GT-700
Capacity:150~200KG/h
Power: 1.5KW
Net Weight: 160KG
Outside Size:1525*1220*1490MM
Oil Filter Press
oil filter press useed in small scale oil

extruding plant Model: 6LB-250
Capacity: 200kg/hr
Power: 1.1kw
Weight: 470kg
Working Pressure: 0.3-0.4MPa
Dimension: 1300*750*700mm
Screw Elevator
screw elevator Model: STS-5
Capacity: 1~2T/H
Power: 1.5KW
Net Weight: 200KGS
Outside Size:2880*1080*575mm
Screw Oil Press
screw press in the small sunflower oil pressing

line Model: YZS-100
Capacity: 4-5MT/24H
Power: 7.5KW & 15HP
Outside Size: 1910*610*765mm
Weight: 550kg
Integrated Oil Press
integrated oil press in the small sunflower oil

pressing line that can press and filter oil at one time Model: YZS-100A
Capacity: 5T/24H
Power: 7.5+1.1KW
Outside Size: 2270x750x1820mm
               &n bsp;         1220*590*600mm
Weight: 780KG


Features of Cottonseed Oil Pressing Line

  • Wide application for various seeds and nuts;
  • Easy to operate, install and commissioning;
  • Small investment, fewer land space, fewer labor but with the complete function of the production.
  • The semi-continuous can avoid the unstable material feeding caused by manual and can make the worker safety more under the higher temperature working situation.


Cottonseed Oil Information

cottonseed oil

Cottonseed oil in its natural unhydrogenated state has no cholesterol and does not contain trans fatty acids. However, it does contain over 50% omega-6 fatty acids and only trace amounts of omega-3 fatty acids, and the imbalance is considered unhealthy if not used in moderation or balanced elsewhere in the diet. Furthermore, these polyunsaturated fats can potentially go rancid during the extraction process.
Cottonseed oil is a vegetable oil extracted from the seeds of the cotton plant after the cotton lint has been removed. Oils extracted from cottonseed must be refined to remove gossypol, a naturally occurring toxin that protects the cotton plant from insect damage. Therefore, unrefined cottonseed oil is sometimes used as a pesticide.
