palm oil pressing line


The small production line is for getting the palm oil from palm kernels. The production capacity changes according to the oil press machines you choose. This small palm oil pressing line is a semi-continuous oil production unit that easily connects each piece of press machinery together to create higher efficiency and at the same time, make the production more safety. This small automatic oil pressing unit requires very little investment and land space, but maintains complete functionality in production. It is your ideal choice for starting your palm oil making business!

small scale palm kernel oil pressing line


KMEC is a well-reputed company in the field of oil processing which specialized in oil project design, facility installation and debugging. We can provide customized oil pressing plant  as well as oil refinery plant for a great number of vegetable seeds, such as groundnuts, canola seed, coconut, cottonseed, sunflower seed etc. We will always offer the most suitable solution according to your raw materials and production scale. The small oil pressing lines we offered are premium quality guaranteed at the most competitive prices. Choose us today and we will never let you down!

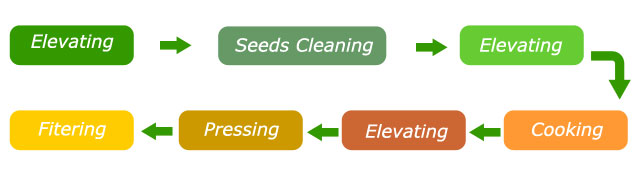

Palm Kernel Oil Pressing Flowchart

flowchart of palm kernel oil pressing

Palm Kernel Oil Pressing Line Main Machinery

Note: The daily production of the line depends on the screw oil press machine you use. The integrated oil press includes vacuum filter in it that can filter crude oil itself.
Cleaning Sieve
cleaning sieve in small oil pressing unit Model: 6SX-1200
Capacity: 3~5T/H
Power: 1.5KW
Net Weight: 300KG
Outside Size:2350*1350*1300MM
Cooker
cooker machine in small scale oil expelling line Model: 6GT-700
Capacity:150~200KG/h
Power: 1.5KW
Net Weight: 160KG
Outside Size:1525*1220*1490MM
Oil Filter Press
oil filter press useed in small scale oil extruding plant Model: 6LB-250
Capacity: 200kg/hr
Power: 1.1kw
Weight: 470kg
Working Pressure: 0.3-0.4MPa
Dimension: 1300*750*700mm
Screw Elevator
screw elevator Model: STS-5
Capacity: 1~2T/H
Power: 1.5KW
Net Weight: 200KGS
Outside Size:2880*1080*575mm
Screw Oil Press
screw press in the small sunflower oil pressing line Model: YZS-100
Capacity: 4-5MT/24H
Power: 7.5KW & 15HP
Outside Size: 1910*610*765mm
Weight: 550kg
Integrated Oil Press
integrated oil press in the small sunflower oil pressing line that can press and filter oil at one time Model: YZS-100A
Capacity: 5T/24H
Power: 7.5+1.1KW
Outside Size: 2270x750x1820mm
1220*590*600mm
Weight: 780KG

Advantages of Our Palm Kernel Oil Pressing Line

advantages of the small palm kernel oil pressing line

Palm Oil & Palm Kernel Oil

palm kernel and palm fruit

Palm kernel oil is an edible plant oil derived from the kernel of the oil palm. Palm kernel oil, which is semi-solid at room temperature, is more saturated than palm oil and comparable to coconut oil. It is commonly used in commercial cooking because of its relatively low cost, and because it remains stable at high cooking temperatures and can be stored longer than other vegetable oils.

Palm oil is naturally reddish in color because of a high beta-carotene content. It is not to be confused with palm kernel oil derived from the kernel of the same fruit. The use of palm oil in food products has attracted the concern of environmental activist groups.
